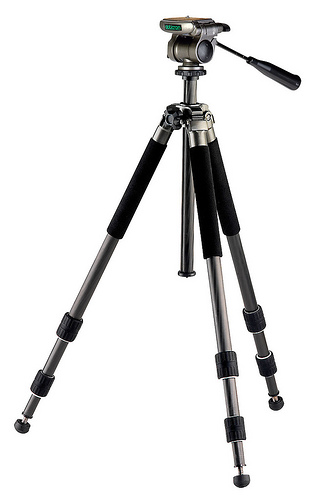

Traveller Carbon Fibre Tripod
Compact & lightweight carbon fibre tripod designed for use with fieldscopes, photo & video equipment.

Model 42625 features 42800 Mg panhead.
Model 42626 supplied as canopy, legs and centre column only.

Features include:

• 3 section carbon fibre tubular legs giving a usable height without raising centre column of 1370mm (54")(1) for maximum panning stability at high magnifications
• Leg angles; 25°, 60° & 85°
• 42800 Mg 3-way panhead (see insert)
• 360° panning
• +90° to -60° tilt
• Integral quick release plate (1/4")
• 210mm sliding centre column adjustment with collar and bolt lock
• Durable foam hand grips
• Twist-type leg locks
• Rubber/spiked feet
• 42607 Tripod strap connector
• Height extended: 1590mm
• Height retracted: 25° - 640mm (25 1/4") / 60 ° - 520mm (20 1/2") / 85° - 405mm (16")
• Weight: Legs, canopy & centre column 1360g, Panhead 524g
• 5 year guarantee

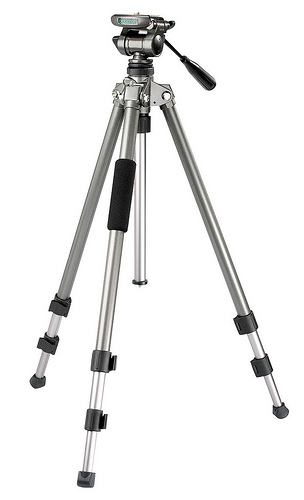

42804 BIRDWATCHER'S TRIPOD - with sliding removable center column
Lightweight & rigid tripod designed for use with fieldscopes, photo & video equipment.

Features include:

• Specially extended 3 section tubular legs giving a usable height without raising center column of 1410mm (55") for maximum panning stability at high magnifications
• Model 42800 MG 3-way panhead (see insert)
• 360° panning
• +90° to -60° tilt
• Integral quick release plate (1/4")
• 300mm sliding center column adjustment
• Durable foam hand grip
• Clip-type leg locks and rubber feet
• 42607 Tripod strap connector
• Height extended: 1710mm (67")(1)
• Height retracted: 650mm (26")(1)
• Weight: 2180g
• 5 year guarantee

42604L Birdwatcher's Tripod
Canopy, legs and centre column only

•Extended 3 section tubular legs giving a usable height without raising centre column of 1325mm (52”)1 for panning stability at high magnifications
•300mm sliding centre column
•Clip-type leg locks and rubber feet
•Height extended 1625mm (64”)
•Height retracted 565mm (22 1/4”
•Weight 1656g
•5 year guarantee

42831 Pro Tripod with Manfrotto 701HDV Panhead - with sliding removable center column
As 42804 but fitted with Manfrotto 701HDV 2-way composite fluid panhead. Well suited for use with ES 80/100 and HR 80 ED telecopes.

Features include:

• .Extended 3 section tubular legs giving a usable height without raising centre column of 1420mm (56”)1 for panning stability at high magnifications
• Manfrotto 701HDV 2-way panhead
• 360° panning
• +90° to -60° tilt
• Integral quick release plate (1/4")
• 300mm sliding centre column
• Clip-type leg locks and rubber feet
• Height extended 1720mm (67 3/4”)1
• Height retracted 660mm (26”)1
• Weight 2348g
• 5 year guarantee

42605 BC2 HIDE CLAMP - with sliding removable center column
Lightweight & rigid Bench Clamp support specially designed for use with fieldscopes, photo & video equipment.

Features include:

42610 BC-2 Clamp & Column

c/w 500mm sliding center column
Combines with 42800Q tripod panhead to convert to a Hide Clamp. Weight: 436g.

42611 BC-2 Clamp only

Fits directly onto center column to convert into a Hide Clamp.
Supplied complete with Ø21/22mm, 23/24mm and Ø25/26mm reducer sleeves.
Weight: 280g.

42100 MONOPOD
All purpose monopod support for use with lightweight fieldscopes, photo & video equipment.

. 4 section extendable with leg lock system
. Height extended: 1470mm (58 inches)
. Height retracted: 470mm (18 1/2 inches)
. Integral 1/4 inch thread allowing three platform options:
42600 or 42200 panheads or 42606 Quick release plate & shoe
. Durable foam hand grip (not illustrated)
. Rubber foot
. Weight: 695g
. 5 year guarantee

40501 UNIVERSAL MOUNT
Designed to clamp horizontally or vertically onto a range of objects.

. 2 way one lever operated panhead
. Integral 1/4 inch thread
. Maximum panning height: 80mm
. Maximum jaw width: 45mm
. Optional Quick release plate & shoe
. Dim (mm): 210x60x70
. Weight: 597g
. 5 year guarantee

40502 CAR WINDOW MOUNT

. 2 way one lever operated panhead
. Integral 1/4 inch thread
. Maximum panning height: 80mm
. Protective rubber jaw pads
. Optional quick release plate & shoe
. Dim (mm): 205x60x85
. Weight: 555g
. 5 year guarantee

40503 UNIVERSAL II - HIDE MOUNT
£44.00

. Lightweight Bench Clamp
. 2 way one lever operated panhead
. Integral 1/4 inch thread
. Maximum panning height: 445mm
. Maximum jaw width: 45mm
. Optional Quick release plate & shoe
. Dim (mm): 450x60x95
. Weight:845g
. 5 year guarantee

Bipod & Carry ball for Spotting Scope

Rigid aluminum Bipod finished in matt black. Connects to Telescope tripod mounting or independent tripod sleeve using 1/4 inch thread.
Supplied complete with 270mm extension pole for use on a bench or table with a usable height range from 265mm to 730mm.Folds up for easy storage.

Weight c/w extension pole 1502g.
