QUANTUM-3 SERIES
OBSERVATION BINOCULARS
High quality waterproof observation binoculars, with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating BAK-4 prisms and a fully broadband multi-coated optical system. Features a central stabilising bar with sliding tripod adaptor, for optimum balancing on tripod. Finished in Leatherette and supplied in foam-lined Aluminium storage/carrying case.
|
20x80
|
25x100
|
|
| Magnification |
20x
|
25x
|
| Object Lens Diameter |
80mm
|
100mm
|
| Exit Pupil Diameter |
4mm
|
4mm
|
| Field of View |
2.99 °
|
2.99 °
|
| Nearest Focus Distance |
12m
|
17m
|
| Weight |
2.4kgs
|
4.7kgs
|
|
£140.00
|
£220.00
|
|
|
|
|

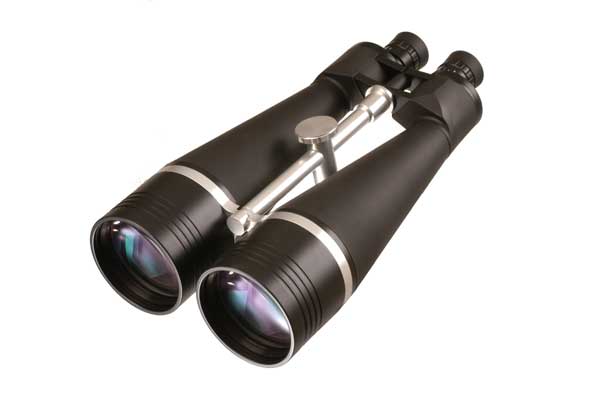

QUANTUM-4 SERIES
OBSERVATION BINOCULARS
High quality waterproof observation binoculars, with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating BAK-4 prisms and a fully broadband multi-coated optical system. Features a central stabilising bar with sliding tripod adaptor, for optimum balancing on tripod. High-precision construction using CNC machined metal components. Finished in Black Rubber and supplied in foam-lined Aluminium storage/carrying case.
| 10x60 | 15x70 |
20x90
|
25x100
|
|
| Magnification | 10 |
15 |
20x
|
25x
|
| Object Lens Diameter | 60mm |
70mm |
90mm
|
100mm
|
| Exit Pupil Diameter | 6mm |
4.6mm |
4.5mm
|
4
|
| Field of View | 5.3º |
4.4º |
3.22°
|
2.53°
|
| Nearest Focus Distance | 8m |
15m |
30m
|
30m
|
| Weight | 1.37kgs |
1.87kgs |
3.7kgs
|
4.6kgs
|
£90.00 |
£110.00 |
£199.00
|
£245.00
|
|

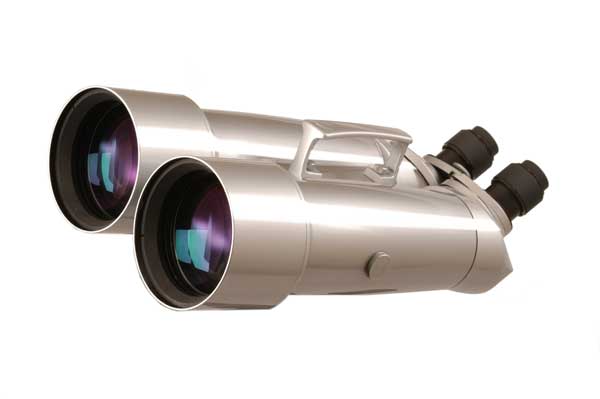

QUANTUM-5 20/40x100
OBSERVATION BINOCULAR (45° Angled Viewing)
Top-quality waterproof observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses. Supplied with two pairs of eyepieces. Eyepieces are angled at 45 ° , offering excellent versatility for both terrestrial and astronomical viewing. Features carrying handle, built-in lens hoods and trpod adaptor. High quality precision all-metal construction. Supplied in foam-lined Aluminium storage/carrying case.
|
20/40x100
|
|
| Magnification |
20x & 40x
|
| Object Lens Diameter |
100mm
|
| Exit Pupil Diameter |
5mm-2.5mm
|
| Field of View |
2.53° -1.5°
|
| Nearest Focus Distance |
20m
|
| Weight |
7kg
|
|
£715.00
|
|
QUANTUM-6 SERIES
OBSERVATION BINOCULAR (90° Angled Viewing)
Top-quality waterproof observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. The top quality triplet objective lens delivers superb, semi-apochromatic optical performance. Supplied with three pairs of 1.25" eyepieces. Eyepieces are angled at 90 ° making them ideal for high-angle astronomical viewing. Features carrying handle, built-in lens hoods and tripod adaptor. High quality precision all-metal construction. Supplied in foam-lined Aluminium storage/carrying case.
20/26/32x88 |
20/30/37x100 |
|
| Magnification | 20x/26x/32x |
20x/30x/37x |
| Object Lens Diameter | 88mm (Semi-Apo Triplet) |
100mm (Semi-Apo Triplet) |
| Exit Pupil Diameter | 4.4mm-2.75mm |
5mm-2.70mm |
| Field of View | 2.29º (at 20x) |
2.35º (at 20x) |
| Nearest Focus Distance | 25m |
20m |
| Weight | 4.5kg |
5.5kg |
£715.00 |
£785.00
|
|
Optional Accessories:
| U fork Mount and tripod | £169.00 |

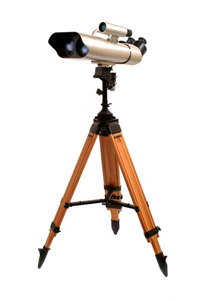

QUANTUM-7.1 SERIES 25x100
OBSERVATION BINOCULAR (45 ° Angled Viewing)
Top-quality observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses provide semi-apochromatic optical performance. Eyepieces are angled at 45 ° , offering excellent versatility for both terrestrial and astronomical viewing. Features built-in lens hoods, finderscope shoe and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod. Binocular supplied in foam-lined storage/carrying case.
|
25x100
|
|
| Magnification |
25x (40x optional)
|
| Object Lens Diameter |
100mm
(Semi-Apo Triplet)
|
| Exit Pupil Diameter |
4mm
|
| Field of View |
2.53
°
|
| Nearest Focus Distance |
30m
|
| Weight |
13.8kg (Bino) + 6.2kg (Tripod)
|
|
£925.00
|
|
Optional Accessories:
| Pair of 40x Eyepieces | £119.00 |
|
| 7x50 Finderscope | £62.99 |

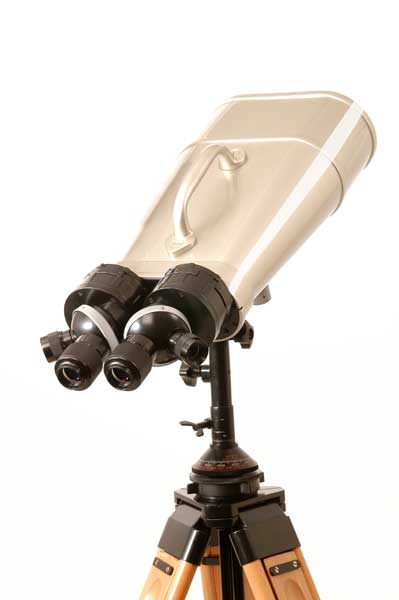

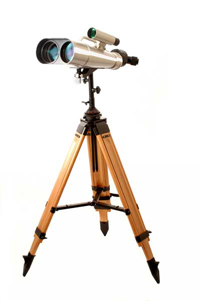

QUANTUM-7.2 SERIES 25/40x100
OBSERVATION BINOCULAR (Twin Eyepiece/Straight Viewing)
Top-quality observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses provide semi-apochromatic optical performance. Features two eyepieces of 25x and 40x magnifications, on a rotatable mount, for ultra-quick and convenient magnification changes. Features built-in lens hoods, finderscope shoe and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod and integral steel tabletop tripod. Binocular supplied in foam-lined Aluminium storage/carrying case.
25/40x100 |
|
| Magnification | 25x & 40x |
| Object Lens Diameter | 100mm (Semi-Apo Triplet) |
| Exit Pupil Diameter | 4mm-2.5mm |
| Field of View | 2.53 ° /1.5 ° |
| Nearest Focus Distance | 30m/60m |
| Weight | 13kg (Bino) + 7.1kg (Tripod) |
|
£1025.00
|
|
Optional Accessories:
| 7x50 Finderscope | £62.99 |

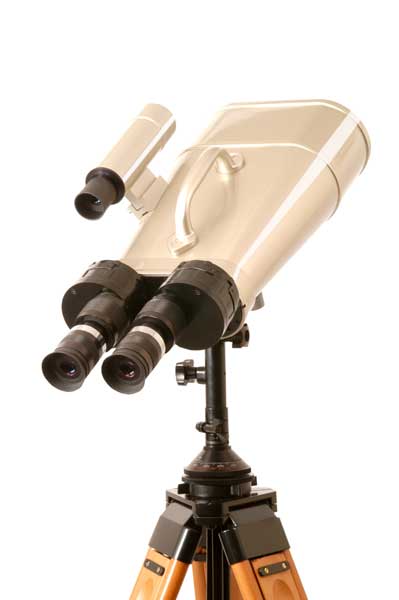

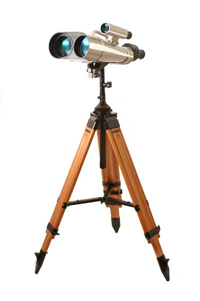

QUANTUM-7.3 SERIES 25/62x100
OBSERVATION BINOCULAR (Interchangeable Eyepieces/Straight Viewing)
Top-quality observation binocular with individual focussing. Features Helical focussing without eyepiece rotation! Designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Designed for long-range terrestrial and astronomical observations. Top quality triplet objective lenses provide semi-apochromatic optical performance. Supplied with pairs of 25x (f24.5mm) and 62x (f10mm) interchangeable eyepieces, but can be used with any standard 1.25" astronomical eyepiece, making this instrument highly versatile for astronomical use. Features built-in lens hoods, finderscope shoe, 7X50 Finderscope and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod and integral steel tabletop tripod. Binocular supplied in foam-lined Aluminium storage/carrying case.
25/62x100
|
|
| Magnification | 25x & 62x |
| Object Lens Diameter | 100mm (Semi-Apo Triplet)
|
| Exit Pupil Diameter | 4mm-1.61mm |
| Field of View | 2.53 ° /1.15 °
|
| Nearest Focus Distance | 30m/60m |
| Weight | 14kg (Bino) + 7.1kg (Tripod)
|
|
£1105.00
|
|

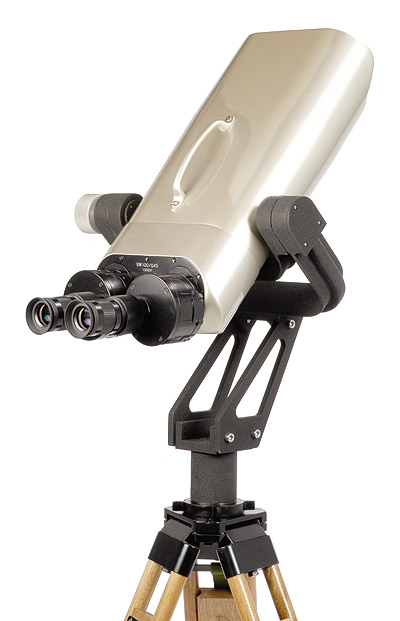

QUANTUM-7.4 SERIES 25x100
OBSERVATION BINOCULAR (with U-Fork Mount)
Top-quality waterproof, nitrogen-filled observation binocular with individual helical eyepiece focusing, designed for medium-to-long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses provide semi-apochromatic optical performance. Eyepieces are angled at 45°, offering excellent versatility for both terrestrial and astronomical viewing. The eyepieces can also be removed, and replaced with many standard 1.25" astronomical eyepieces for added versatility. The U-Fork mount is specially designed for astronomical use, allowing the binocular to be angled upwards for use at high altitudes approaching the zenith. Features built-in lens hoods, finderscope shoe and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod. Binocular supplied in foam-lined storage/carrying case.
25x100
|
|
| Magnification | 25x |
| Object Lens Diameter | 100mm (Semi-Apo Triplet)
|
| Exit Pupil Diameter | 4mm-1.61mm |
| Field of View | 2.53 °
|
| Nearest Focus Distance | 30m |
| Weight | 13kg (Bino) + 7.1kg (Tripod)
|
£1220 |
|
