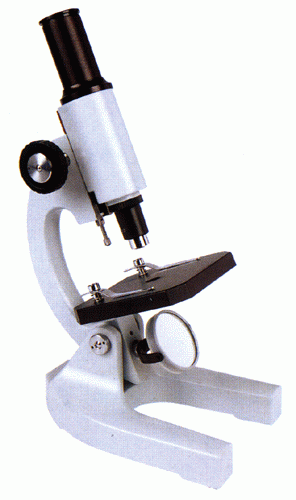

Ultra 1 Microscope
£35.00

The Ultra-1 microscope is ideally suited to observers, looking to begin macro exploration. The classic microscope design is particularly suited to those in the early stages of secondary school education and the solid, high quality construction will ensure years of reliable performance.
It boasts a solid, all metal construction with a qulaity optics not normally found on a microscope of this price. The locked-on eyepiece prevents accidental loss or damage of this essential element. The smooth rack-and-pinion focus system possesses a slip clutch and focus stop mechanism to prevent over focussing and damage to the objective lens and glass slides. Illumination is accomplished simply by the use of a tilting mirror, located beneath the slide stage.


SPECIFICATIONS

Magnifications: 200x
Eyepiece(s): 10x wide-field eyepiece
Objective lens: 20x
Illumination: Plano concave mirror
Focusing: Rack & Pinion
Dimensions: 155x105x290mm
Weight: 1.2kg
Supplied in polystyrene pack

Ultra 2 Microscope
£70.00

The Ultra-2 microscope is for observers who are looking for greater flexibility with their macro exploration. The classic microscope design is particularly suited to students studying for GCSE level examinations and the solid, high quality construction will ensure that the microscope can be passed onto younger siblings, providing years of reliable performance. It boasts a solid, all metal construction with a range of features. The smooth rack-and-pinion focus system possesses a slip clutch and focus stop mechanism to prevent over focussing and damage to the objective lens and glass slides. A range of 6 magnifications are achievable by means of switching between the two (10x and 16x power) eyepieces and the three (4x, 10x and 40x power) objective lens'. Illumination is accomplished simply by the use of a tilting mirror, located beneath the slide stage.


SPECIFICATIONS

Magnifications: 40x, 60x 100x, 160x, 400x, 640x
Eyepiece(s): 10x wide-field and 16x high power
Objective lens: 4x, 10x and 40x on a triple objective turret
Illumination: Plano concave mirror
Focusing: Rack & Pinion with a separate knob for fine focus control
Dimensions: 155x105x290mm
Weight: 1.4kg
Supplied in polystyrene pack

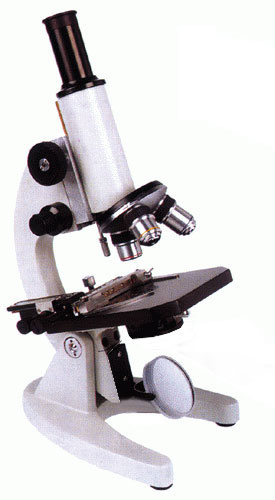

Ultra 3 Microscope
£80.00

The Ultra 3Microscope is a research quality instrument aimed at the serious observer who expects greater flexibility and functionality with their macro exploration. This classic microscope design is particularly suited to students studying for A level examinations and the solid, high quality construction will ensure that the microscope can eventually be passed onto younger siblings, providing years of reliable performance. The Ultra 3 Microscope boasts a solid, all metal construction with a full range of features. The smooth rack-and-pinion focus system possesses a slip clutch and focus stop mechanism to prevent over focussing and damage to the objective lens and glass slides. The mechanical stage enables precise location of glass slides via x and y axis controls. A range of 9 magnifications are achievable by means of switching between the three (5x, 10x and 16x power) eyepieces and the three (10x, 40x and an oil immersion 100x power) objective lens'. (Oil is included for the 100x lens) Subject illumination is accomplished by the use of a tilting mirror, located beneath the slide stage.


SPECIFICATIONS

Magnifications: 50x, 100x, 160x, 200x, 400x, 500x, 640x, 1000x & 1600x
Eyepiece(s): 5x, 10x wide-field and 16x high power
Objective lens: 10x, 40x and (100x Oil Immersion) on a triple objective turret
Illumination: Plano concave mirror
Focusing: Rack & Pinion with a separate knob for fine focus control
Additional: High precision, x and y motion mechanical stage for the precise location of glass slides
Dimensions: 155x105x290mm
Weight: 1.8kg
Supplied in polystyrene pack
