Zenith Microscopes have been supplied to Education, Medicine and Industry for over 35 years and during this time they have been held in high regard for the rare combination of quality performance and value which they offer.

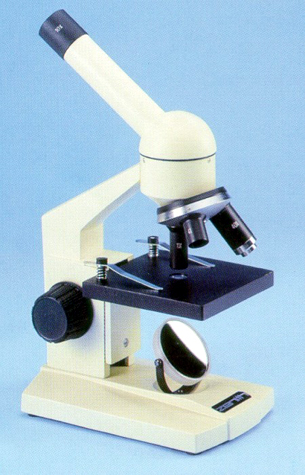

Zenith SCM-200 Junior Microscope £60.00 |
|
The Zenith SCM-200 Junior Microscope is a compact instrument of die-cast construction and very good optical performance designed for Primary and Middle School use. Features monocular head inclined at 45 degrees for convenient viewing and a non tilting stage. Anti-tamper safety features include locked on eyepiece, stage clips and mirror and a focus-stop to prevent damage to glass microslides and objective lenses.
|

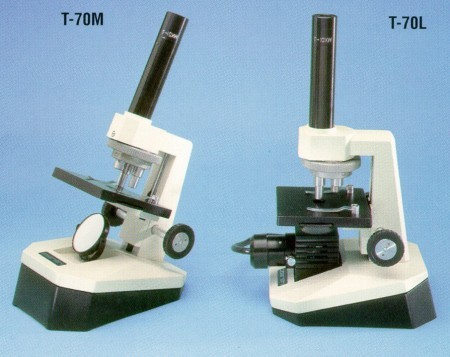

 Zenith T-70 Teaching Microscope
|
||
|
The Zenith T-70 Series are purpose built school microscopes of high optical quality and particularly robust die-cast construction. Two identical models are available with different illumination systems. Maximum magnifications of x200 ensure ease of use and makes them ideal instruments for use in Primary, Middle and Lower Secondary Schools. Features are ingenious base design, which when rotated, instantly converts the microscope from vertical to inclined viewing mode. Anti-tamper safety features include locked on eyepiece & objective lenses, locked on stage clips, slip clutch on the focus movement to prevent over focussing and focus stop to prevent damage to glass microslides and objective lenses. Standard Specification
General Features (both models):-
|

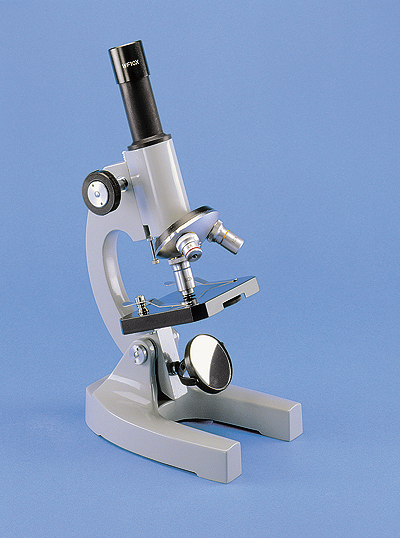

 Zenith P-6A Student Microscope £80.00 |
Another purpose
built student microscope, featuring both coarse and fine focussing mechanisms.
Anti-tamper safety features include locked-on eyepiece and stage slips,
slip-clutch on the focussing movements to prevent over-focussing and a
focus-stop to prevent damage to glass microslides and objective lenses.
|
|
|
||||||||||||
|
Purpose built teaching instruments
of modern design & robust construction ideal for GCSE biology studies.
Excellent optical performance is provided by DIN standard optics. Two
identical models are available with a choice of either a plano-concave
mirror or 230v 15w illumination. Anti-tamper safety features essential
for school use include locked-on eyepiece and stage clips, slip-clutch
on the coarse focus movement to prevent over-focussing and an internal
focus-stop to prevent damage to glass microslides and objective lenses.
Standard Specification
General Features (both models)
|
Zenith Ultra-400M Advanced Student Microscope Ideal for ordinary and advanced
level biology studies. The Zenith ULTRA-400 series are purpose built teaching
instruments finished to a very high standard, combining excellent optical
performance and a very reliable, modern, user-friendly design with a mechanical
construction designed to withstand the rigours or everyday heavy classroom
use. All models feature high quality DIN standard optics, anti-tamper
safety features included locked on eyepiece and stage clips, slip clutch
on the coarse focus movement to prevent over focussing and an adjustable
focus stop to prevent damage to glass microslides and objective lenses.
Highly recommended.
|
||||||||||||||||||||||||||||||||||||||||||||||||

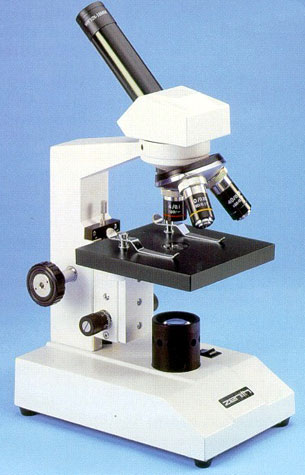

 Zenith Ultra-400L Advanced Student Microscope Ideal for ordinary and advanced
level biology studies. The Zenith ULTRA-400 series are purpose built teaching
instruments finished to a very high standard, combining excellent optical
performance and a very reliable, modern, user-friendly design with a mechanical
construction designed to withstand the rigours or everyday heavy classroom
use. All models feature high quality DIN standard optics, anti-tamper
safety features included locked on eyepiece and stage clips, slip clutch
on the coarse focus movement to prevent over focussing and an adjustable
focus stop to prevent damage to glass microslides and objective lenses.
Highly recommended.
LUMAX-1 Ideal for GCSE biology studies at all levels, this new series of cordless microscopes incorporates innovative LED illumination technology into a proven microscope design, which features all the essential ‘Anti-Tamper’ features demanded by heavy school use. The microscope features a powerful rechargeable battery, located in the base, which is charged in situ with the mains power supply supplied. Charging time is typically 5-6 hours and when fully charged, the continuous discharge time is more than 50 hours. Under normal use, the LED bulb can last for more than 10,000 hours. The level of illumination is suitable even for high-power oil immersion work at x1000.
|
||||||||||||||||||||||||||||||||||||||||||||||||
|
Ideal for ordinary and advanced
level biology studies. The Zenith ULTRA-400 series are purpose built teaching
instruments finished to a very high standard, combining excellent optical
performance and a very reliable, modern, user-friendly design with a mechanical
construction designed to withstand the rigours or everyday heavy classroom
use. All models feature high quality DIN standard optics, anti-tamper
safety features included locked on eyepiece and stage clips, slip clutch
on the coarse focus movement to prevent over focussing and an adjustable
focus stop to prevent damage to glass microslides and objective lenses.
Highly recommended.
|
||||||||||||||||||||||||||||||||||||||||||||||||
 Zenith Ultra-400LAX Advanced Student Microscope Ideal for ordinary and advanced level biology studies. The Zenith ULTRA-400 series are purpose built teaching instruments finished to a very high standard, combining excellent optical performance and a very reliable, modern, user-friendly design with a mechanical construction designed to withstand the rigours or everyday heavy classroom use. All models feature high quality DIN standard optics, anti-tamper safety features included locked on eyepiece and stage clips, slip clutch on the coarse focus movement to prevent over focussing and an adjustable focus stop to prevent damage to glass microslides and objective lenses. Highly recommended. Standard Specification
|

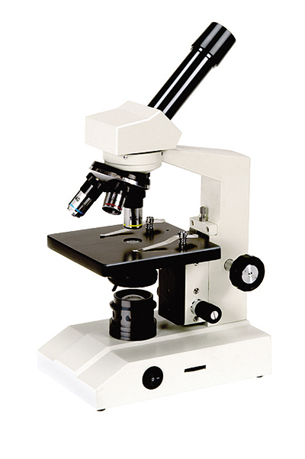

LUMAX-2
‘Lumax’ Series Advanced Student Cordless LED Microscopes
£195
-
Magnification range: x40, x100, x400, X1000* (*see note below)
-
*x1000 possible with optional x100R Oil objective available separately
-
DIN Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65)
-
X10 Widefield eyepiece (with pointer)
-
ABBE Condenser (N.A. 1.25) with Iris Diaphragm
-
Quadruple Objective Turret
-
9V 20W adjustable LED Illumination
-
Built-In 9V Rechargeable Battery
-
Supplied with 230V 9W Battery Charger
-
Separate Coarse and Fine Focusing
-
Rack and Pinion Focusing
-
Monocular Head Rotatable 360°
-
‘Locked-On’ Eyepiece and Stage Clips
-
Slip-clutch on Focusing Mechanisms
-
Height 360mm / Weight 3 Kilograms
|
|
||||||||||||||||||

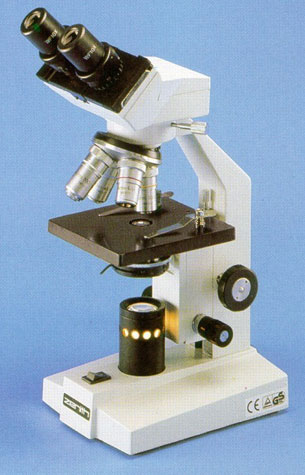

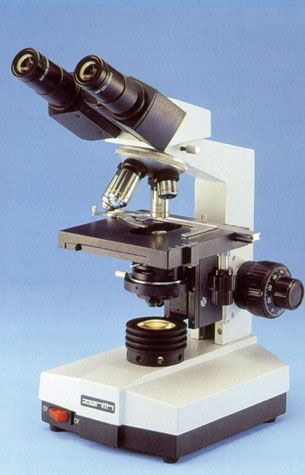

| A high quality binocular
microscope designed to meet the needs of the more advanced biology student
at an economical price. Combines excellent optical performance and a robust,
reliable ergonomic design. Anti-tamper safety features include locked on
stage clips, slip clutch on the coarse focussing movement and an adjustable
focus stop. Standard Specification
|

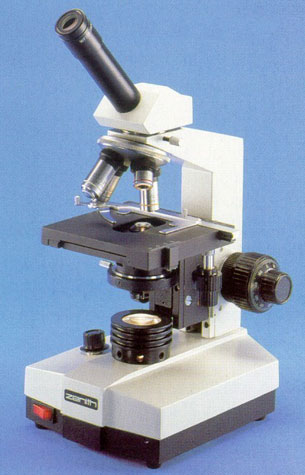

 Zenith Ultra-500LM Laboratory Microscope £345.00 |
|||||||||||||||||||||||||||||||||||||||||||||
| Full sized laboratory standard
instrument of modern ergonomic design, robust reliable construction and
high optical performance. Ideal for use in schools, colleges and professional
laboratories over a wide range of biological, medical, veterinary, bacteriological
and agricultural applications. Highly recommended. Standard Specification
|
|||||||||||||||||||||||||||||||||||||||||||||
|
Supplied with
Seidentopf Binocular Head
|
|||||||||||||||||||||||||||||||||||||||||||||

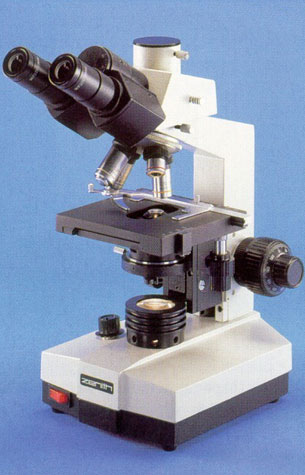

 Zenith Ultra-500LT Laboratory Microscope £475.00 |
|||||||||||||||||||||||||||||||||||||||||||||
| Supplied with
Seidentopf Trinocular Head Full sized laboratory standard instrument of modern ergonomic design, robust reliable construction and high optical performance. Ideal for use in schools, colleges and professional laboratories over a wide range of biological, medical, veterinary, bacteriological and agricultural applications. Highly recommended. Standard Specification
|

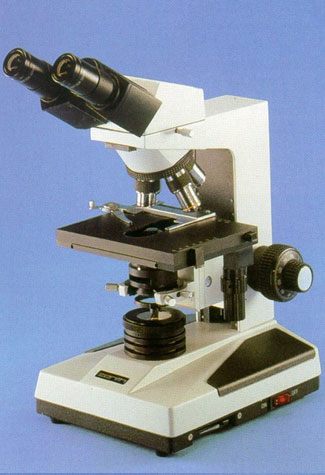

 Zenith Microlab 2000B Binocular Head Laboratory Research Microscope £650.00 Professional high performance
compound laboratory microscope of modern reliable and ergonomic construction.
Designed for routine investigations and laboratory diagnoses over a wide
range of tertiary educational, medical and research applications. Excellent
optical performance is provided by planachromatic objective lenses, offering
crisp, high contrast images and a flat field of view. This instrument
offers superb versatility as it is easily upgradable for use over a wide
range of microscopical techniques and applications. Highly recommended.
|
|
|

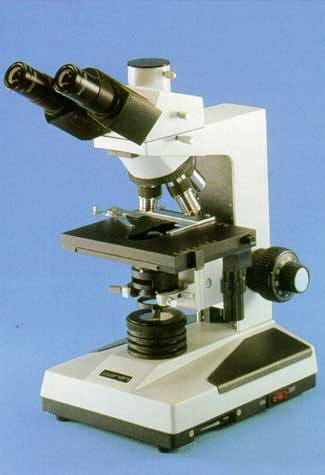

 Zenith
Microlab 2000T Trinocular Head
Professional high performance
compound laboratory microscope of modern reliable and ergonomic construction.
Designed for routine investigations and laboratory diagnoses over a wide
range of tertiary educational, medical and research applications. Excellent
optical performance is provided by planachromatic objective lenses, offering
crisp, high contrast images and a flat field of view. This instrument
offers superb versatility as it is easily upgradable for use over a wide
range of microscopical techniques and applications. Highly recommended.
|
|
Zenith
Microlab 2000TPH Trinocular Phase Contrast Professional high performance
Phase Contrast microscope of modern reliable and ergonomic construction.
Designed for routine investigations and laboratory diagnoses over a wide
range of tertiary educational, medical and research applications. Excellent
optical performance is provided by planachromatic objective lenses, offering
crisp, high contrast images and a flat field of view. This instrument
offers superb versatility as it is easily upgradable for use over a wide
range of microscopical techniques and applications. Highly recommended.
|
|

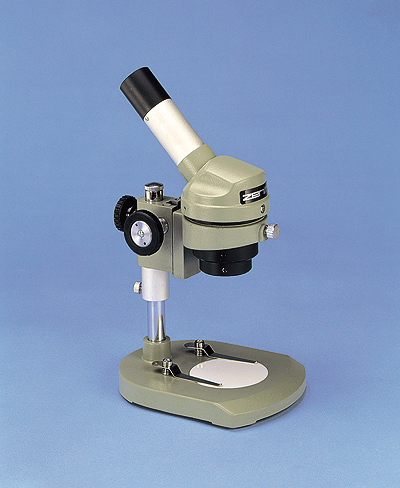

Zenith PM-1 x20 Primary Inspection Microscope
£60.00
A high quality instrument of robust, reliable metal construction and excellent optical performance. Highly recommended for Primary Science Education and Field Study Centres (officially approved by the Royal Microscopical Society for use in primary schools). Extremely simple to use, the PM-1 is ideal for the examination of everyday objects in fascinating yet understandable detail. The anti-tamper student proof design includes locked-on eyepiece & stage clips and a slip clutch on the focus movement. Also an extremely useful routine inspection microscope for use in industrial applications.
Standard Specification
•Fixed Magnification x20
•x10 widefield eyepiece (locked on)
•x2 achromatic objective
•Field of view 9.5mm
•Working distance 81mm
•Monocular head inclined 45 degrees & rotatable 360 degrees for convenient viewing
•Upright/erect image
•Precise, smooth-action rack & pinion focusing
•Black & White reversible Stage Plate
•With Stage Plate removed the microscope can focus through base aperture to view larger objects
•Complete with Dust Cover
•Supplied in polystyrene pack
•Dimensions 145x110x260mm
•Weight 1.2kg

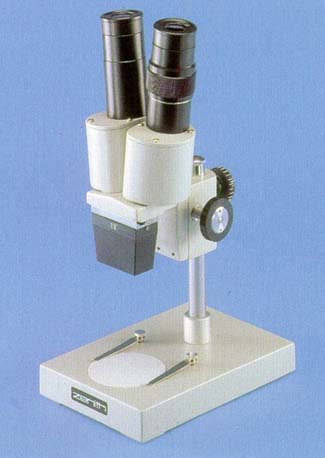

Zenith STM-J
x10 Stereoscopic Microscope
£79.00
Our replacement for
the ever popular BM-51-2 model. A robust reliable easy to operate instrument
of high optical quality. Its relatively low magnification, easy focussing
and wide field of view makes it a useful educational tool for use in primary
schools and field study centres, as well as having numerous applications in
industry.
Standard Specification
-
Fixed Magnification x10
-
Paired x10 Widefield Eyepieces (Locked-on) with rubber eyecups
-
Achromatic Objective Pair x1
-
Field of view 20mm
-
Working Distance 60mm
-
Dioptric adjustment provided on left eyepiece tube
-
Stereo head height adjustable on column to accommodate specimens on varying sizes
-
Rack and Pinion focussing
-
Adjustable Inter-pupillary distance
-
Black/white reversible stage plate
-
With stage plate removed, the microscope can be used to examine specimens too large to put under the microscope in the conventional way by focussing through the aperture in the Base Plate
-
Locked on stage clips
-
Dust Cover
-
Supplied in polystyrene pack
-
Height 300mm
-
Weight 1.45kg
Zenith STM-1 x20 Stereoscopic Microscope
£79.00
A routine inspection
microscope combining high optical quality with robust, reliable construction
and simplicity of operation, making it an extremely useful tool for use in
industry, field study centres and throughout education from primary level
upwards. Particularly recommended for the younger user for the examination
of everyday objects in fascinating yet understandable detail.
Standard Specification
-
Magnification x20
- Paired x10 widefield eyepieces (locked on) with rubber eyecups
- Achromatic objective pair x2
- Field of view 10mm
- Working distance 70mm
- Dioptric adjustment provided on left eyepiece tube
- Stereo head height adjustable on column to accommodate specimens of varying sizes
- Rack and pinion focussing
- Adjustable inter-pupillary distance
- Black/White Reversible stage plate
- With stage plate removed, the microscope can be used to examine specimens too large to put under the microscope in the conventional way by focussing through the aperture in the Base Plate
- Locked on Stage Clips
- Dust cover
- Supplied in polystyrene pack
- Height 300mm
-
Weight 1.45kg

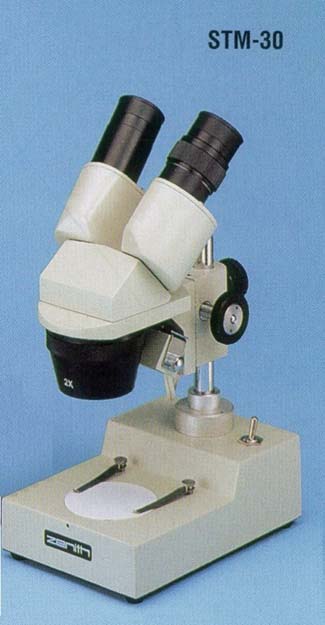

Zenith STM-30 x10/x30 Illuminated
Stereoscopic Microscope
£139.00
A versatile instrument of robust metal construction and excellent optical performance ideal for use in schools, colleges, and field study centres as well as having wide applications in industry. Anti-tamper safety features include locked on eyepieces and stage clips and a slip clutch on the focus movement.
-
Dual Magnification x10, x30
-
x10 widefield eyepieces (with rubber eyecups)
-
Parfocal achromatic objective pairs x1 & x3 on revolving turret
-
12v 10w top illumination
-
Working distance 50mm
-
Field of view 5-15mm
-
Black/White reversible stage plate
-
Binocular head inclined 45degreees for comfortable viewing
-
Full inter-pupillary and dioptric adjustment provided
-
Rack and pinion focussing
-
Dust cover
-
Supplied in polystyrene pack
-
Dimensions 170x115x300mm
-
Weight 2.5kg
| Accessories |
Price
|
|
| 12v 10w Bulb SB-10 |
£2.50
|
|
| x15 widefield eyepiece (2 req'd) EP-15 |
£20.00
|
Zenith STM-40 x20/x40 Illuminated Stereoscopic Microscope
£155.00
A versatile instrument of robust metal construction and excellent optical performance ideal for use in schools, colleges, and field study centres as well as having wide applications in industry. Anti-tamper safety features include locked on eyepieces and stage clips and a slip clutch on the focus movement.
-
Dual Magnification x20, x40
-
x10 widefield eyepieces (with rubber eyecups)
-
Parfocal achromatic objective pairs x2 & x4 on revolving turret
-
12v 10w top illumination (independent or simultaneous)
-
Working distance 45mm
-
Field of view 5-10mm
-
Black/White reversible and frosted glass stage plates provided
-
Binocular head inclined 45degreees for comfortable viewing
-
Full inter-pupillary and dioptric adjustment provided
-
Rack and pinion focussing
-
Dust cover
-
Supplied in polystyrene pack
-
Dimensions 190x117x310mm
-
Weight 2.8kg
| Accessories |
Price
|
|
| 12v 10w Bulb SB-10 | £2.50 |
|
| x15 widefield eyepiece (2 req'd) EP-15 | £20.00 |
Zenith STL-80 x10/x20 Long Arm Stereoscopic Microscope
£220.00
A very useful and versatile instrument for use throughout education and industry. Features 12v 10w halogen illumination and two magnifications of x10 and x20 as standard. The long boom arm is adjustable to vary the viewing angle of the stereoscopic head. The heavy microscope base ensures stability. The long working distance of 231mm and a field of view of 20mm make it ideal for operations such as dissection and fine assembly work.
-
Magnification x10, x20
-
Paired x10 & x20 widefield eyepieces
-
Achromatic Objective Pair x1
-
Working distance 231mm
-
Field of view 20mm
-
230v/12v 10w halogen illumination
-
Binocular head inclined 45 degrees for comfortable viewing
-
Full interpupillary and dioptric adjustment provided
-
Boom arm can be raised on its pillar to accommodate specimens of varying sizes
-
Rack and Pinion focussing
-
Supplied in polystyrene pack
-
Dimensions 390x130x390mm
-
Weight Approx 6k
| Accessories |
Price
|
|
| Replacement 12v 10w bulb SB-12 | £2.50 |
|
| x15 widefield eyepiece (2 req'd) EP-15 | £20.00 |
|
|
x0.5 objective pair OG-1 |
£30.00
|

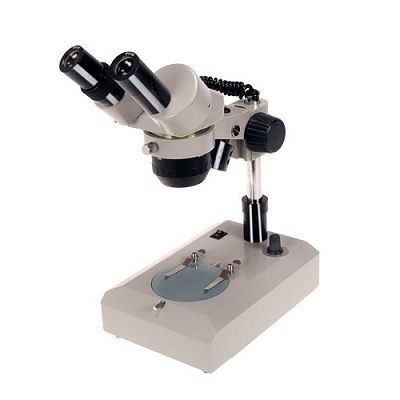

ST-400 x20/x40/x50/x100 Advanced Stereoscopic Microscope
£300.00
- Magnification Range: x20, x40, x50, x100
- Magnifications of x10-x200 possible with optional accessories
- Eyepieces supplied: x10 & x25 Widefield Pairs
- Achromatic Objectives Supplied: x2 & x4 Pairs on revolving turret
- Working Distance: 105mm
- Field of View: 10mm (20x), 8mm (40x), 5mm (50x), 3mm (100x)
- Incident Illumination: 6V 15W Halogen / Transmitted Illumination 230V 5W
- Focusing Mechanism: Rack and Pinion
- Interchangeable Glass and Black & White stage plates
- Approx Weight: 4.5 kilograms / Maximum Height 390mm
| Accessories | Price |
|
| x20 Widefield Eyepiece ST-20X | £25.00 |
|
| x15 Widefield Eypiece ST-15X | £25.00 |
|
| x2 Supplementary Objective SL-7 |
£50.00 |
|
| x0.5 Supplementary Objective SL-6 | £50.00 |
|
| Replacement 230v5w Fluorescent Bulb SB-5 | £5.00 |
|
| Replacement 6v20w Halogen Bulb SB-15 | £6.00 |
Zenith STZ-3500 x7-x45 Zoom Stereoscopic Microscope
£400.00
High performance full
sized professional zoom stereo microscope ideal for use over a wide range
of industrial, medical & educational applications. Features x7-x45 continuous
zoom facility providing delightfully sharp, crisp, upright stereoscopic images.
The magnification can be increased up to x180 with addition of the optional
eyepieces and supplementary objectives that are available.
Standard Specification
-
Magnification x7 -x45
-
(Magnification of x3.5 -x180 achievable by upgrading with the optional eyepieces & supplementary objective lenses listed below)
-
Paired widefield eyepieces x10
-
Zoom Objective magnification ratio x0.7 -x45
-
Binocular Head inclined 45 degrees, rotatable 360 degrees
-
Working distance 95mm
-
Field of view 4.4 - 28.6mm
-
230v/6v 20w halogen incident illumination (positionable)
-
230v 6v fluorescent transmitted illumination
-
Binocular head inclined 45 degrees, rotatable 360 degrees
-
Full interpupillary & dioptric adjustment provided
-
Rack and pinion focussing
-
Stereo head height adjustable on pillar to accommodate specimens of varying sizes
-
Supplied with dust cover
-
Dimensions 250x160x410mm
-
Weight 6.5kg
| Accessories |
Price
|
|
| x15 Widefield Eyepiece (2 reqd) WF-15 |
£25.00
|
|
| x20 Widefield Eyepiece (2 reqd) WF-20 |
£25.00
|
|
| x0.5 Supplementary objective SL-1 |
£40.00
|
|
| x0.75 Supplementary objective SL-2 |
£40.00
|
|
| x1.5 Supplementary Objective SL-3 |
£40.00
|
|
| x2 Supplementary Objective SL-4 |
£40.00
|
|
| SLR Camera Adaptor CA-8 |
£80.00
|
|
| Spare 6v 20w bulb SB-25 |
£6.00
|
Zenith STZ-4500 x7-x45 Zoom Stereoscopic Microscope
£450.00
High performance full
sized professional zoom stereo microscope ideal for use over a wide range
of industrial, medical & educational applications. Features x7-x45 continuous
zoom facility providing delightfully sharp, crisp, upright stereoscopic images.
The magnification can be increased up to x180 with addition of the optional
eyepieces and supplementary objectives that are available.
Standard Specification
-
Magnification x7 -x45
-
(Magnification of x3.5 -x180 achievable by upgrading with the optional eyepieces & supplementary objective lenses listed below)
-
Paired widefield eyepieces x10
-
Zoom Objective magnification ratio x0.7 -x45
-
Trinocular Head(STZ-4500)
-
Working distance 95mm
-
Field of view 4.4 - 28.6mm
-
230v/6v 20w halogen incident illumination (positionable)
-
230v 6v fluorescent transmitted illumination
-
Binocular head inclined 45 degrees, rotatable 360 degrees
-
Full interpupillary & dioptric adjustment provided
-
Rack and pinion focussing
-
Stereo head height adjustable on pillar to accommodate specimens of varying sizes
-
Supplied with dust cover
-
Dimensions 250x160x410mm
-
Weight 6.5kg
| Accessories |
Price
|
|
| x15 Widefield Eyepiece (2 reqd) WF-15 | £25.00 |
|
| x20 Widefield Eyepiece (2 reqd) WF-20 | £25.00 |
|
| x0.5 Supplementary objective SL-1 | £40.00 |
|
| x0.75 Supplementary objective SL-2 | £40.00 |
|
| x1.5 Supplementary Objective SL-3 | £40.00 |
|
| x2 Supplementary Objective SL-4 | £40.00 |
|
| SLR Camera Adaptor CA-8 | £80.00 |
|
| CCTV Adaptor VA-4TV |
£90.00
|
|
| Spare 6v 20w bulb SB-25 | £6.00 |
|
|
Sherwoods Photo Ltd Orders & Information Telephone 01527-857500
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
RSS | XML Sitemap | HTML Sitemap | Blog
